KMJd系列防爆铠装电缆密封接头
浏览次数：
关 键 词：阀组,三阀组,内螺纹三阀组,一体化三阀组,镇江传奇机电制造有限公司
生产制造：镇江传奇机电制造有限公司
该系列防爆电缆密封接头用于各种铠装电缆引入防爆电器设备用。
| 技术数据 | |||||||||
| ■ 危险区域: 1区, 2区, 21区, 22区 | |||||||||
| ■ 气体或蒸汽类别: ⅡA, ⅡB, ⅡC | |||||||||
| ■ 制造材料: 碳钢镀锌,黄铜(镀镍),不锈钢 | |||||||||
| ■ 执行标准: GB 3836.1, GB 3836.2, GB 3836.3, GB12476.1 | |||||||||
| ■ 防爆标志: ExdⅡC / ExeⅡ / DIPA21 IP66 | |||||||||
| ■ 工作温度: -20℃～80℃ | |||||||||
| ■ 防护等级: IP66 | |||||||||

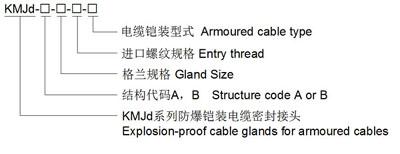

| 型号规格说明 |

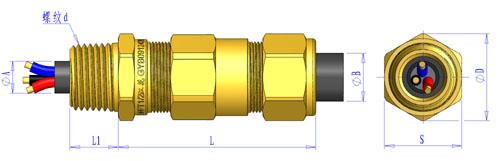

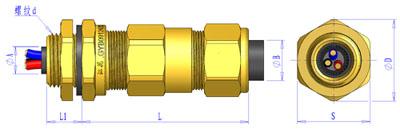

| 选型规格表—直螺纹M，G |
|
规格Size |
螺纹规格d |
内层电缆尺寸 "A" |
电缆外径 "B" |
铠层厚度 "t" |
D max |
L1 min |
L Max | |||||
|
Available Entry Threads |
Cable Bedding Diameter |
Overall Cable Diameter |
Armour Range | |||||||||
|
钢丝(W) |
编织(B) |
钢带(T) | ||||||||||
|
M |
G |
Min |
Max |
Min |
Max |
Min-max |
Min-Max |
Min-Max | ||||
|
16 |
M16x1.5 |
G1/2 |
4 |
8.5 |
8 |
13.5 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
24.5 |
11 |
64 |
|
M20x1.5 |
G1/2 |
30 |
13 |
64 | ||||||||
|
20S |
M20x1.5 |
G1/2 |
7 |
11.5 |
10 |
16 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
30 |
15 |
64 |
|
20 |
M20x1.5 |
G1/2 |
10 |
14 |
15 |
21 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
33 |
15 |
72 |
|
25 |
M25x1.5 |
G3/4 |
13 |
19.5 |
18 |
26.5 |
1.25-1.60 |
0.2-0.4 |
0.3-0.6 |
41 |
15 |
81 |
|
32 |
M32X1.5 |
G1 |
19 |
26 |
24 |
33.5 |
1.6-2.0 |
0.3-0.5 |
0.3-0.6 |
50 |
15 |
94 |
|
40 |
M40x1.5 |
G11/4 |
24 |
32 |
30 |
40.5 |
1.6-2.0 |
0.3-0.5 |
0.5-1.0 |
60 |
15 |
107 |
|
50S |
M50x1.5 |
G11/2 |
30 |
38 |
36 |
46 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
65 |
15 |
116 |
|
50 |
M50x1.5 |
G2 |
37 |
43.5 |
42 |
53.5 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
75 |
15 |
120 |
|
选型规格表—NPT锥螺纹 |
|
规格Size |
螺纹规格d |
内层电缆尺寸"A" |
电缆外径 "B" |
铠层厚度 "t " |
D max |
L1 min |
L Max | ||||
|
Available Entry Threads |
Cable Bedding Diameter |
Overall Cable Diameter |
Armour Range | ||||||||
|
钢丝铠(W) |
编织铠(B) |
钢带铠(T) | |||||||||
|
NPT |
Min |
Max |
Min |
Max |
Min-max |
Min-Max |
Min-Max | ||||
|
16 |
NPT1/2 |
4 |
8.5 |
8 |
13.5 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
24.5 |
15 |
64 |
|
20S |
NPT1/2 |
7 |
11.5 |
10 |
16 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
30 |
15 |
64 |
|
20 |
NPT1/2 |
10 |
14 |
15 |
21 |
0.9-1.25 |
0.2-0.4 |
0.3-0.6 |
33 |
15 |
73 |
|
NPT3/4 | |||||||||||
|
25 |
NPT3/4 |
13 |
19.5 |
18 |
26.5 |
1.25-1.60 |
0.2-0.4 |
0.3-0.6 |
41 |
15 |
85 |
|
NPT1 |
18 | ||||||||||
|
32 |
NPT1 |
19 |
26 |
24 |
33.5 |
1.6-2.0 |
0.3-0.5 |
0.3-0.6 |
50 |
19 |
96 |
|
40 |
NPT11/4 |
24 |
32 |
30 |
40.5 |
1.6-2.0 |
0.3-0.5 |
0.5-1.0 |
60 |
20 |
107 |
|
50S |
NPT11/2 |
30 |
38 |
36 |
46 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
65 |
20 |
118 |
|
NPT2 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
22 | |||||||
|
50 |
NPT2 |
37 |
43.5 |
42 |
53.5 |
2.0-2.5 |
0.3-0.5 |
0.5-1.0 |
75 |
22 |
122 |
